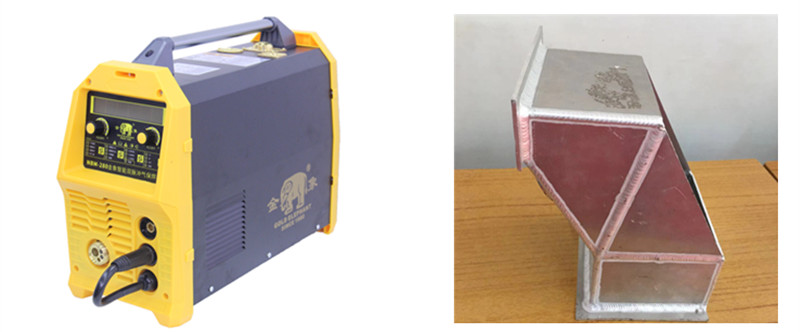

Can weld a variety of base materials: carbon steel, stainless steel, aluminum and aluminum alloy.

Wire tray is clamped on the left side of the chassis

Open the case, this is a single drive wire feeding mechanism.

The original machine has a guide wire tube. If you use aluminum welding wire, you need to loosen the screw and remove the guide wire tube. Other materials do not need to be modified.

Clamp out the wire guide tube from the front panel.

According to the specific wire diameter to choose the appropriate wire feeding wheel replacement.It comes with v-type 0.8~1.0 and u-type 1.0~1.2.

Install the aluminum wire disc, first do not press the wire feeding wheel, first connect the welding gun, remove the welding nozzle, let the welding wire from the welding gun mouth.

The welding wire can be normally sent out from the welding nozzle before installing the welding nozzle, press the wire feeding wheel, close the box cover.

According to the actual material connected to the protection of air source, welding aluminum generally use argon protection.

Press the select button to select the following categories: gas shielded welding, single pulse, double pulse and manual welding;Base material: carbon dioxide, carbon MAG, stainless steel and aluminum;Welding wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm;Select manual or semi-automatic: 2T, 4T, S4T or spot welding.

Then began to test welding, sure enough, the splash is very small.

By turning the large knob of the panel, the current can be adjusted.When the current is moderate, the current is steady and the pulse is rhythmic.

Successful fish scale welding! Perfect!
